Deep Trekker DT320 Mini Pipe Crawler

Deep Trekker DT320 Mini Pipe Crawler

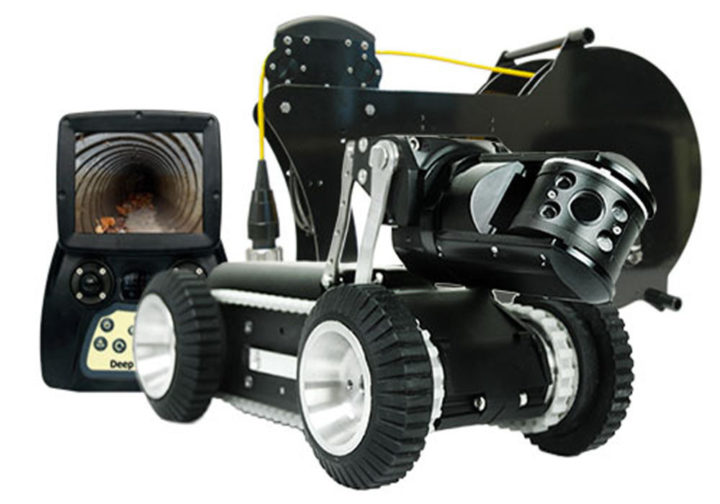

Meet the battery powered mini pipe crawler inspection system. This mini CCTV sewer inspection camera is capable of inspecting 6-inch lined pipes (152 mm) and even undersized 6-inch diameters. Constructed with the same design as the larger DT340; rugged stainless steel aluminum body, durable sapphire glass lens cover and clear HD P/T camera.

The mini crawler is battery operated and has the ability to work throughout the day. Being so small, the entire DT320 system, including the tether and controller, has been designed to fit into one transportation case. No dedicated truck required.

The DT320 Mini features a new High Definition pan & tilt camera offering clear resolution of defects or obstructions in the small diameter pipes. One hand-held controller is all you need to operate the DT320 Mini. With the simple joysticks and buttons, conducting inspections or training new operators is effortless.

Technical Specifications

Manufacturer

Size (L x W x H)

17"-25" x 5" x 4"

Weight

25 – 35 lbs.

Turning Radius

Top Speed

Body Material

Stainless Steel, Aluminum

Operating Temp

-5C to 40C

Depth Rating

50 m (124 ft)

Camera

Controller Controlled, Pan (360 degree) & Tilt (280 degree)

Lighting

650 Lumens; 700Hd Tvl, Color, 0.001 Lux (Low Light)

Standard Battery

19.2 Vdc (Lithium Batteries)

Sonde

512 Hz

Run Time

Up To 5.0 Hours Battery Life
