Schwarze Spray Patcher Load King

Schwarze Spray Patcher Load King

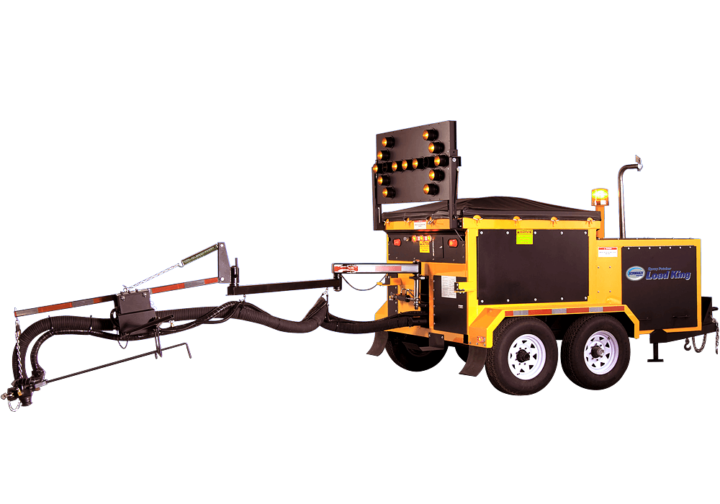

The Schwarze Spray Patcher Load King is a fully self-contained trailer mounted pavement repair system. It has a 2.0 cubic yard aggregate hopper. Its 100 gallon emulsion tank will support the use of four cubic yards of aggregate on average. The unit is fully shrouded to protect components from the elements and allow cold weather operation.

The easy to operate Load King is powered by a 49 HP Perkins diesel engine with 40 gallon fuel tank. An optional vacuum system is available to assist in cleaning potholes of water and debris prior to repair.

The Load King allows for mixing on-demand to eliminate the need for commercially premixed products.

All Schwarze products are American made in an ASQ/ANSI/ISO 9001:2105 Standard quality system certified facility in Huntsville Alabama.

Technical Specifications


Aux. Engine

Perkins T4F 404F-E22TA, 67 HP @ 2600 rpm

Blower System

Lobe-Type Air Blower, Direct Drive, 435 cfm

Hose Inner Diameter


Hose Length


Maximum Flow

125 lbs per minute

Aggregate Hopper Capacity

2 cu yds

Emulsion Capacity

100 gal

Delivery Pressure

70 psi
